Specification
| Parameter | Details |

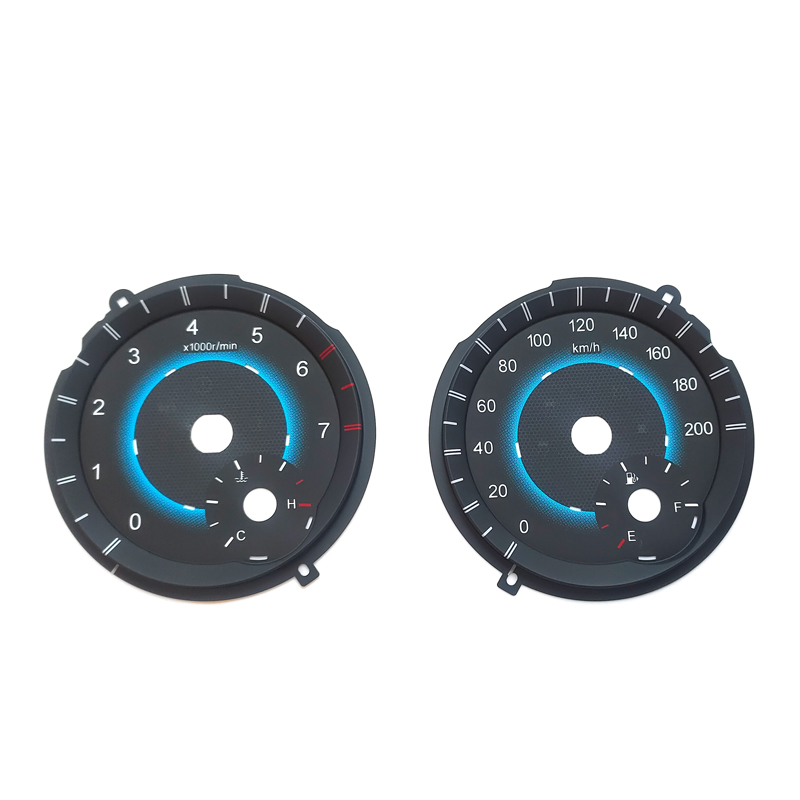

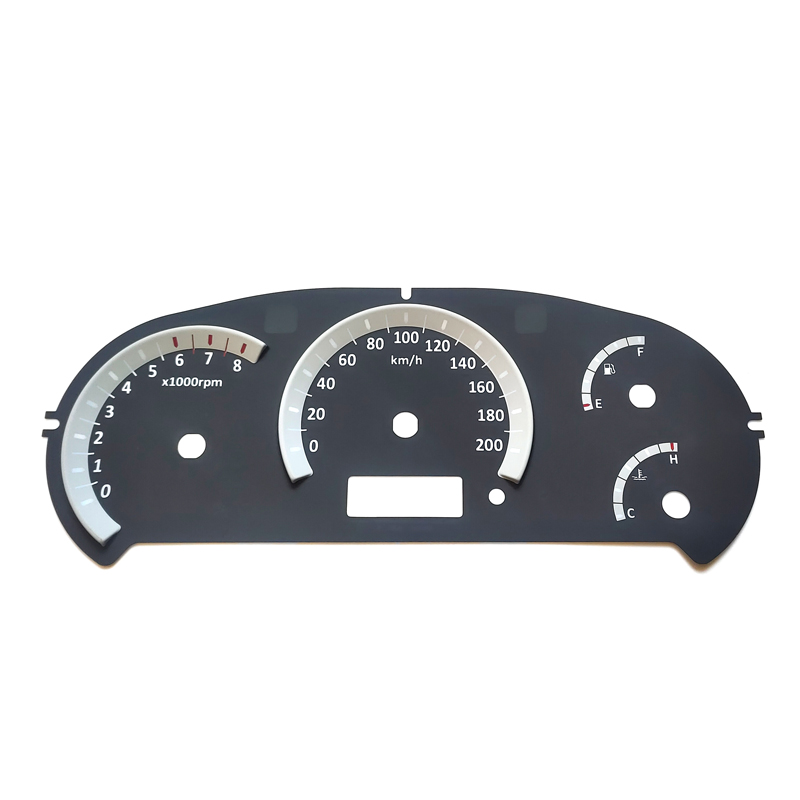

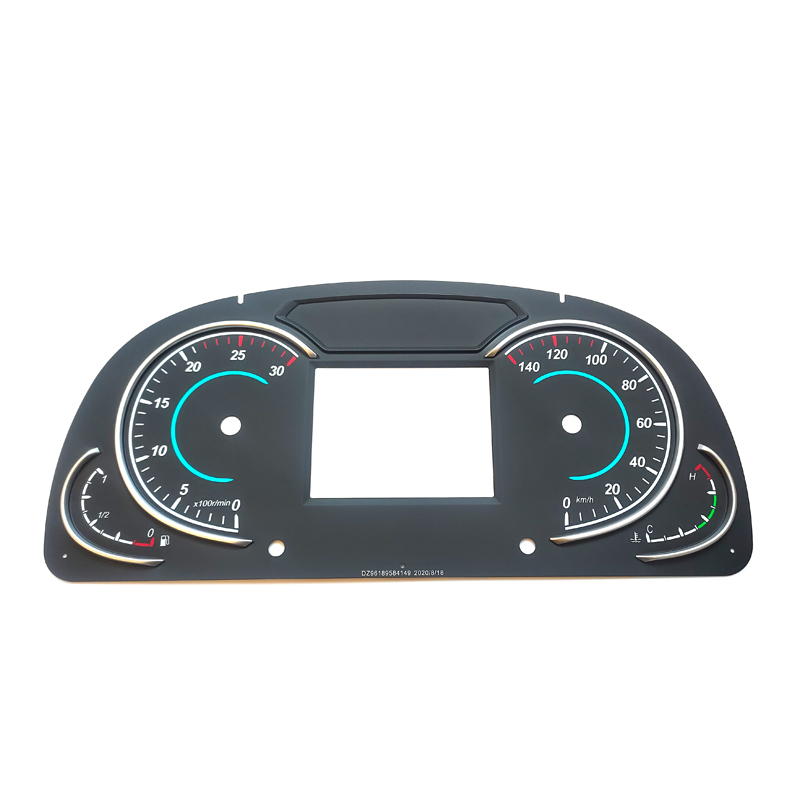

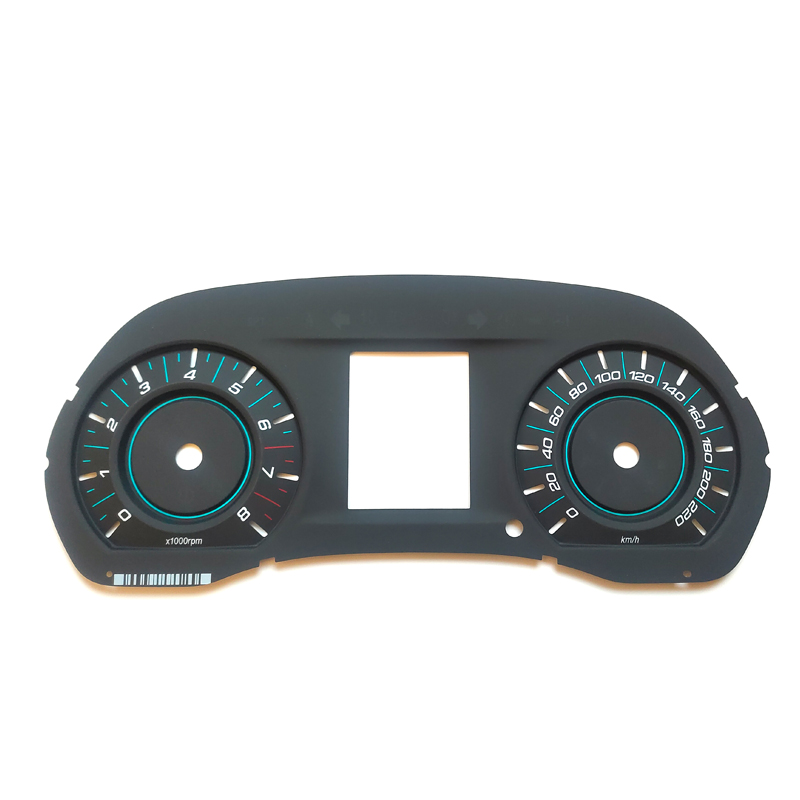

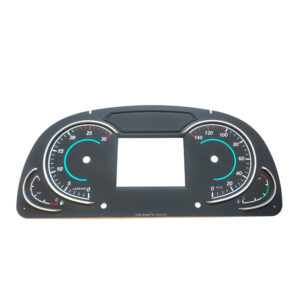

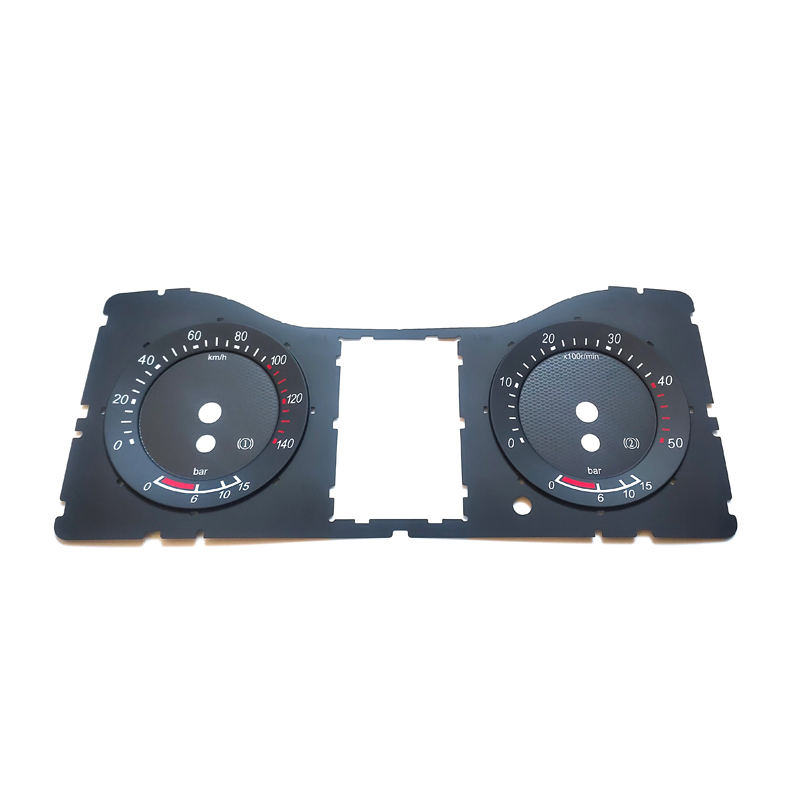

| Product | Automotive Dial: 2D Dial |
| Structure Diagram | Protective Film + Base Material + Ink + Adhesive |
| Base Material Thickness | 0.25 mm, 0.3 mm, 0.38 mm, 0.5 mm, 0.8 mm, 1.0 mm |
| Base Material Finish | Glossy, Matte, Smoke (35% & 50% Transmittance) |
| Operating Temperature | -40 °C to +85 °C |
| Surface Characteristic | Customizable gloss levels and textured finishes available |
| Application Fields | Automotive Instrument Panels, Industrial Control Devices |
2D Odometer: A sophisticated interface that blends sleek aesthetics with precision-engineered performance.
Product Structure
Crafted as a multi-layer composite, this assembly integrates a protective film, robust substrate, vivid ink layer, and reliable adhesive—delivering outstanding durability and dependable operation.
Base Material Thickness
Available in a selection of precise thicknesses: 0.25mm, 0.3mm, 0.38mm, 0.5mm, 0.8mm, and 1.0mm—each designed to meet diverse application requirements.
Base Material Finish
Choose from a range of finishes including gloss, matte, and smoke (35% and 50% light transmittance), balancing visual appeal with functional performance.
Operating Temperature Range
Built to perform reliably in extreme conditions, with an operating range from -40 °C to +85 °C.
Surface Characteristics
Multiple texture and gloss options are available to enhance both tactile experience and visual design, supporting a wide variety of application styles.
Application Fields
Ideal for use in automotive instrument clusters and industrial control panels, where accuracy and long-term reliability are essential.
Detailed Product Features
Diffusion Film
– Material Options: PC and PET films, customizable to meet specific optical and mechanical requirements.
– Light Diffusion: Converts point light sources into uniform surface illumination with tunable diffusion effects.
– Color Customization: Available in a variety of diffusion colors to suit design preferences.
– Thickness Selection: Multiple thickness options to ensure compatibility with your assembly.
Adhesive Layer
– Adhesive Types: Customizable solutions including 3M tapes and foam sponges for reliable bonding.
– Environmental Resistance: Designed to perform in challenging conditions, with resistance to dust, moisture, and temperature extremes.
– Thickness & Bonding: Optimized for smooth integration and a flush finish with your product architecture.
Environmental Suitability
– Operating Temperature: -25 °C to +75 °C
– Storage Temperature: -40 °C to +85 °C
– Humidity Range: 45% to 75% relative humidity
Quality Assurance
– In-process inspections from raw material stage
– Continuous monitoring throughout production
– Final quality audit in dedicated QC workshop
– Custom design support for 2D/3D dashboards and industrial panels—options include analog, digital, GPS, mechanical, high-performance, vintage, and custom speedometer dials.
Manufacturing Strengths
– MES-controlled production scheduling for on-time delivery
– Certified to ISO 9001, ISO 14001, and IATF 16949
– 10,000-class cleanroom environments for printing and IMD injection molding
